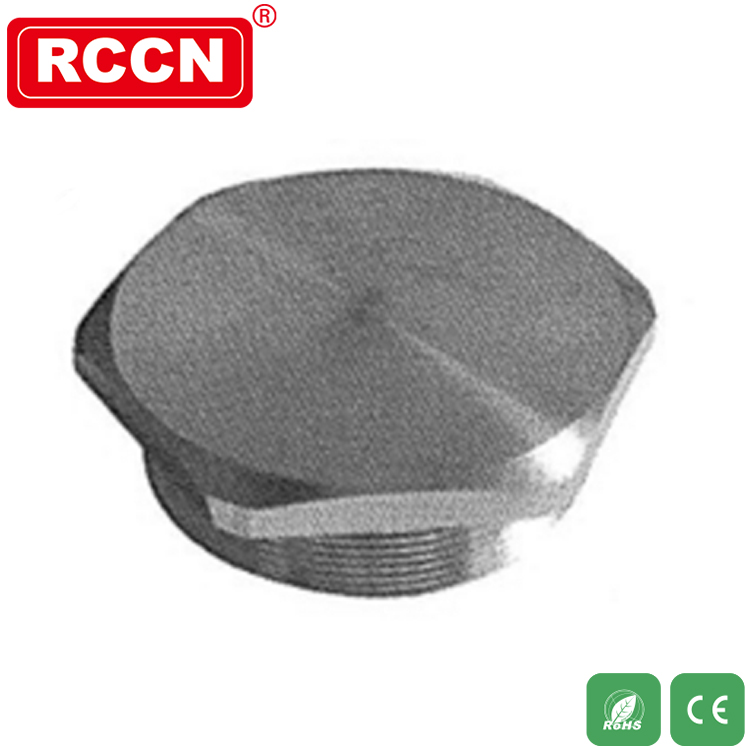

Material: acero inoxidable 304, el material de sellado es caucho modificado
Nivel de protección: IP68
|
Modelo Item No |
Tamaño del hilo thread dimension |
Diámetro exterior del hilo AG mm |
Tamaño de la llave wrench size mm |
Longitud del hilo GL mm |
Longitud total H mm |
Embalaje Std.Pkg PCS |
| MSPS-M Hilo M Metric Thread | ||||||
| MSPS-M10 | M10x1.0 | 10 | 12 | 6 | 9 | 50 |
| MSPS-M12 | M12x1.5 | 12 | 14 | 6 | 9 | 50 |
| MSPS-M16 | M16x1.5 | 16 | 18 | 7 | 10 | 50 |
| MSPS-M18 | M18x1.5 | 18 | 20 | 7 | 10.5 | 50 |
| MSPS-M20 | M20x1.5 | 20 | 22 | 7 | 10.5 | 50 |
| MSPS-M22 | M22x1.5 | 22 | 24 | 7 | 10.5 | 50 |
| MSPS-M24 | M24x1.5 | 24 | 27 | 7 | 10.5 | 50 |
| MSPS-M25 | M25x1.5 | 25 | 28 | 7 | 10.5 | 25 |
| MSPS-M27 | M27x2.0 | 27 | 30 | 8 | 12 | 25 |
| MSPS-M30 | M30x2.0 | 30 | 34 | 8 | 12 | 25 |
| MSPS-M32 | M32xl.5 | 32 | 36 | 8 | 12 | 20 |
| MSPS-M33 | M33x2.0 | 33 | 36 | 8 | 12 | 20 |
| MSPS-M36 | M36x2.0 | 36 | 40 | 8 | 12 | 20 |
| MSPS-M40 | M40x1.5 | 40 | 45 | 9 | 14 | 20 |
| MSPS-M48 | M48x2.0 | 48 | 52 | 9 | 14 | 10 |
| MSPS-M50 | M50x1.5 | 50 | 55 | 9 | 14 | 10 |
| MSPS-M56 | M56x2.0 | 56 | 60 | 9 | 15 | 10 |
| MSPS-M63 | M63x1.5 | 63 | 70 | 10 | 16 | 5 |
| MSPS-M64 | M64x2.0 | 64 | 70 | 10 | 16 | 5 |
| Rosca MSPS-PG Rosca PG | ||||||
| MSPS-PG07 | PG7 | 12.5 | 15 | 6 | 9 | 50 |
| MSPS-PG09 | PG9 | 15.2 | 18 | 7 | 10 | 50 |
| MSPS-PG11 | PG11 | 18.6 | 21 | 7 | 10.5 | 50 |
| MSPS-PG13.5 | PG13.5 | 20.4 | 23 | 7 | 10.5 | 50 |
| MSPS-PG16 | PG16 | 22.5 | 26 | 7 | 10.5 | 50 |
| MSPS-PG21 | PG21 | 28.3 | 32 | 7 | 11 | 25 |
| MSPS-PG29 | PG29 | 37 | 40 | 8 | 12 | 20 |
| MSPS-PG36 | PG36 | 47 | 50 | 9 | 14 | 10 |
| MSPS-PG42 | PG42 | 54 | 58 | 9 | 14 | 10 |
| MSPS-PG48 | PG48 | 59.3 | 65 | 10 | 16 | 5 |
| Rosca de tubería MSPS-G Rosca G | ||||||
| MSPS-G3/8 | G3/8" | 16.662 | 8 | 20 | 11.5 | 100 |
| MSPS-G1/2 | Gl/2" | 20.995 | 8 | 24 | 11.5 | 100 |
| MSPS-G3/4 | G3/4" | 26.441 | 8 | 30 | 12 | 100 |
| MSPS-G1 | G1" | 33.249 | 9 | 38 | 13 | 100 |
| MSPS-G1 1/4 | G1 1/4" | 41.91 | 10 | 50 | 15 | 100 |
| MSPS-G1 1/2 | G1 1/2" | 47.803 | 10 | 52 | 15 | 50 |
| MSPS-G2 | G2" | 59.614 | 11 | 65 | 17 | 50 |
| MSPS-G2 1/2 | G2 1/2" | 75.184 | 11 | 80 | 17 | 25 |
| MSPS-G3 | G3" | 87.884 | 11 | 95 | 18.5 | 15 |
| MSPS-NPT hilo del canal espinal Hilo NPT | ||||||
| MSPS-NPT3/8 | NPT3/8" | 17.055 | 11 | 20 | 14.5 | 100 |
| MSPS-NPT1/2 | NPT1/2" | 21.223 | 13 | 23 | 16.5 | 100 |
| MSPS-NPT3/4 | NPT3/4" | 26.568 | 13 | 30 | 17 | 50 |
| MSPS-NPT1 | NPT1" | 33.228 | 16 | 38 | 20 | 50 |
| MSPS-NPT1 1/4 | NPT1 1/4" | 41.988 | 16 | 50 | 21 | 25 |
| MSPS-NPT1 1/2 | NPT1 1/2" | 48.054 | 18 | 52 | 23 | 25 |
| MSPS-NPT2 | NPT2" | 60.092 | 18 | 65 | 24 | 15 |
| MSPS-NPT2 1/2 | NPT2 1/2" | 72.699 | 22 | 75 | 28 | 10 |
| MSPS-NPT3 | NPT3" | 88.608 | 22 | 95 | 28 | 10 |
