Abrazadera de cables SKU

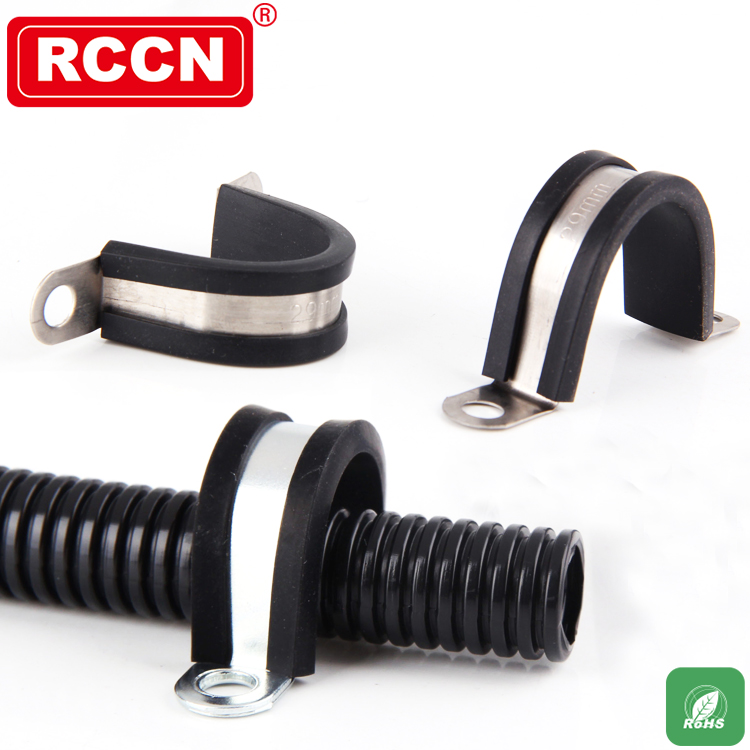

Clip de sujeción de acero inoxidable SKU

Material: acero 304 / 316L con goma antienvejecimiento
Temperatura de funcionamiento: -40 ° C a 150 ° C.
Características del producto: manguera o cable fijo.
Descripción: Este producto es adecuado para ambientes exteriores y de alta temperatura.
                Adopte el bolso de goma que platea grueso y antienvejecedor, funcionamiento excelente
                Se pueden desarrollar otras especificaciones previa solicitud, con los requisitos de MOQ.
Clip de sujeción de acero inoxidable

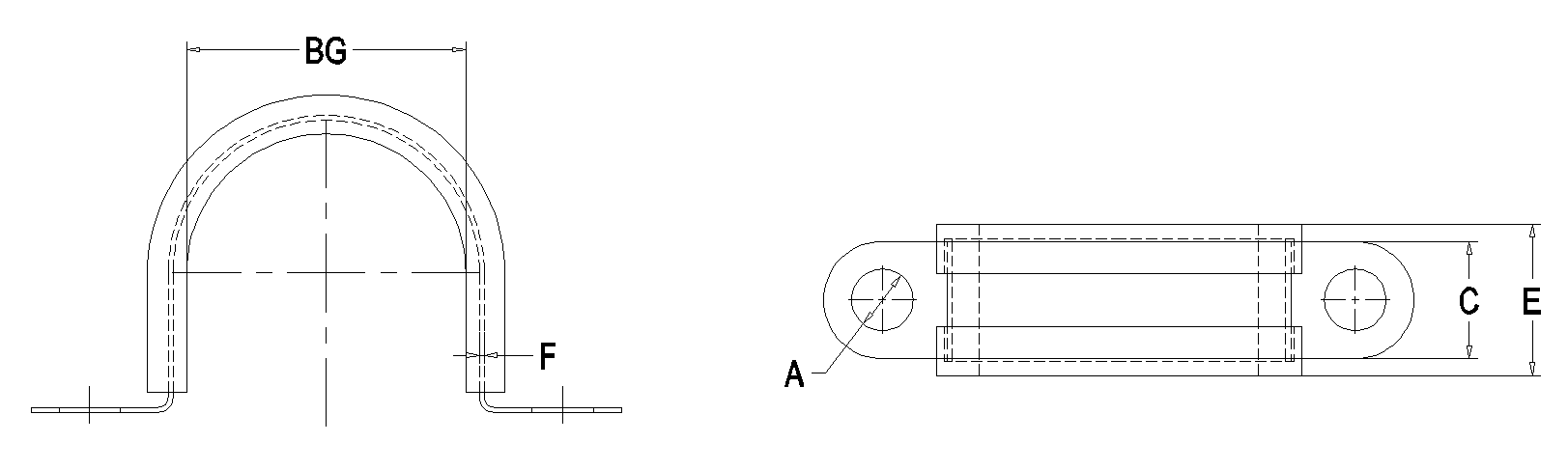

Especificación

Artículo No.
Item No. 		Manguera correspondiente
BG / OD.
 Agujero de tornillo
A 		 Diámetro exterior de goma
E 		Ancho del metal
C 		Espesor
F 		Embalaje
PACK
SKU/M4
SKU BG-07(M4)/304 BG-07/10mm M4 14 9 0.5 50PCS
SKU BG-10(M4)/304 BG-10/13mm M4 14 9 0.5
SKU BG-12(M4)/304 BG-12/15.8mm M4 14 9 0.5
SKU BG-15(M4)/304 BG-15/18.5mm M4 14 9 0.5
SKU BG-17(M4)/304 BG-17/21.2mm M4 14 9 0.5
SKU BG-20(M4)/304 BG-20/25mm M4 14 9 0.5 25PCS
SKU BG-23(M4)/304 BG-23/28.5mm M4 14 9 0.5
SKU BG-25(M4)/304 BG-25/30.0mm M4 14 9 0.5
SKU BG-29(M4)/304 BG-29/34.5mm M4 14 9 0.5
SKU BG-36(M4)/304 BG-36/42.5mm M4 14 9 0.5
SKU BG-48(M4)/304 BG-48/54.5mm M4 14 9 0.5
SKU/M6

SKU BG-07(M6)/304 BG-07/10mm M6 15 12 0.5 50PCS
SKU BG-10(M6)/304 BG-10/13mm M6 15 12 0.5
SKU BG-12(M6)/304 BG-12/15.8mm M6 15 12 0.5
SKU BG-15(M6)/304 BG-15/18.5mm M6 15 12 0.5
SKU BG-17(M6)/304 BG-17/21.2mm M6 15 12 0.5
SKU BG-20(M6)/304 BG-20/25.0mm M6 15 12 0.5 25PCS
SKU BG-23(M6)/304 BG-23/28.5mm M6 15 12 0.5
SKU BG-25(M6)/304 BG-25/30.0mm M6 15 12 0.5
SKU BG-29(M6)/304 BG-29/34.5mm M6 15 12 0.5
SKU BG-36(M6)/304 BG-36/42.5mm M6 15 12 0.5
SKU BG-48(M6)/304 BG-48/54.5mm M6 15 12 0.5
SKU/M6D

SKU BG-07(M6D)/304 BG-07/10mm M6 24.5 20 1.0 50PCS
SKU BG-10(M6D)/304 BG-10/13mm M6 24.5 20 1.0
SKU BG-12(M6D)/304 BG-12/15.8mm M6 24.5 20 1.0
SKU BG-15(M6D)/304 BG-15/18.5mm M6 24.5 20 1.0
SKU BG-17(M6D)/304 BG-17/21.2mm M6 24.5 20 1.0
SKU BG-20(M6D)/304 BG-20/25.0mm M6 24.5 20 1.0 25PCS
SKU BG-23(M6D)/304 BG-23/28.5mm M6 24.5 20 1.0
SKU BG-25(M6D)/304 BG-25/30.0mm M6 24.5 20 1.0
SKU BG-29(M6D)/304 BG-29/34.5mm M6 24.5 20 1.0
SKU BG-36(M6D)/304 BG-36/42.5mm M6 24.5 20 1.0
SKU BG-48(M6D)/304 BG-48/54.5mm M6 24.5 20 1.0
SKU/M8

SKU BG-07(M8)/304 BG-07/10mm M8 24.5 20 1.0 50PCS
SKU BG-10(M8)/304 BG-10/13mm M8 24.5 20 1.0
SKU BG-12(M8)/304 BG-12/15.8mm M8 24.5 20 1.0
SKU BG-15(M8)/304 BG-15/18.5mm M8 24.5 20 1.0
SKU BG-17(M8)/304 BG-17/21.2mm M8 24.5 20 1.0
SKU BG-20(M8)/304 BG-20/25.0mm M8 24.5 20 1.0 25PCS
SKU BG-23(M8)/304 BG-23/28.5mm M8 24.5 20 1.0
SKU BG-25(M8)/304 BG-25/30.0mm M8 24.5 20 1.0
SKU BG-29(M8)/304 BG-29/34.5mm M8 24.5 20 1.0
SKU BG-36(M8)/304 BG-36/42.5mm M8 24.5 20 1.0
SKU BG-48(M8)/304 BG-48/54..5mm M8 24.5 20 1.0
SKU/M10

SKU BG-07(M10)/304 BG-07/10mm M10 30 25 1.0 50PCS
SKU BG-10(M10)/304 BG-10/13mm M10 30 25 1.0
SKU BG-12(M10)/304 BG-12/15.8mm M10 30 25 1.0
SKU BG-15(M10)/304 BG-15/18.5mm M10 30 25 1.0
SKU BG-17(M10)/304 BG-17/21.2mm M10 30 25 1.0
SKU BG-20(M10)/304 BG-20/25.0mm M10 30 25 1.0 25PCS
SKU BG-23(M10)/304 BG-23/28.5mm M10 30 25 1.0
SKU BG-25(M10)/304 BG-25/30.0mm M10 30 25 1.0
SKU BG-29(M10)/304 BG-29/34.5mm M10 30 25 1.0
SKU BG-36(M10)/304 BG-36/42.5mm M10 30 25 1.0
SKU BG-48(M10)/304 BG-48/54.5mm M10 30 25 1.0
SKU BG-70(M10)/304 BG-67/70.0mm M10 30 25 1.0 5PCS



型号
Item No. 		对应软管
BG/外径 		螺丝孔
A 		 橡胶外径 金属宽度
C 		厚度
F 		包装
PACK
SKU/M4
SKU BG-07(M4)/316L BG-07/10mm M4 14 9 0.5 50PCS
SKU BG-10(M4)/316L BG-10/13mm M4 14 9 0.5
SKU BG-12(M4)/316L BG-12/15.8mm M4 14 9 0.5
SKU BG-15(M4)/316L BG-15/18.5mm M4 14 9 0.5
SKU BG-17(M4)/316L BG-17/21.2mm M4 14 9 0.5
SKU BG-20(M4)/316L BG-20/25mm M4 14 9 0.5 25PCS
SKU BG-23(M4)/316L BG-23/28.5mm M4 14 9 0.5
SKU BG-25(M4)/316L BG-25/30.0mm M4 14 9 0.5
SKU BG-29(M4)/316L BG-29/34.5mm M4 14 9 0.5
SKU BG-36(M4)/316L BG-36/42.5mm M4 14 9 0.5
SKU BG-48(M4)/316L BG-48/54.5mm M4 14 9 0.5
SKU/M6

SKU BG-07(M6)/316L BG-07/10mm M6 15 12 0.5 50PCS
SKU BG-10(M6)/316L BG-10/13mm M6 15 12 0.5
SKU BG-12(M6)/316L BG-12/15.8mm M6 15 12 0.5
SKU BG-15(M6)/316L BG-15/18.5mm M6 15 12 0.5
SKU BG-17(M6)/316L BG-17/21.2mm M6 15 12 0.5
SKU BG-20(M6)/316L BG-20/25.0mm M6 15 12 0.5 25PCS
SKU BG-23(M6)/316L BG-23/28.5mm M6 15 12 0.5
SKU BG-25(M6)/316L BG-25/30.0mm M6 15 12 0.5
SKU BG-29(M6)/316L BG-29/34.5mm M6 15 12 0.5
SKU BG-36(M6)/316L BG-36/42.5mm M6 15 12 0.5
SKU BG-48(M6)/316L BG-48/54.5mm M6 15 12 0.5
SKU/M6D

SKU BG-07(M6D)/316L BG-07/10mm M6 24.5 20 1.0 50PCS
SKU BG-10(M6D)/316L BG-10/13mm M6 24.5 20 1.0
SKU BG-12(M6D)/316L BG-12/15.8mm M6 24.5 20 1.0
SKU BG-15(M6D)/316L BG-15/18.5mm M6 24.5 20 1.0
SKU BG-17(M6D)/316L BG-17/21.2mm M6 24.5 20 1.0
SKU BG-20(M6D)/316L BG-20/25.0mm M6 24.5 20 1.0 25PCS
SKU BG-23(M6D)/316L BG-23/28.5mm M6 24.5 20 1.0
SKU BG-25(M6D)/316L BG-25/30.0mm M6 24.5 20 1.0
SKU BG-29(M6D)/316L BG-29/34.5mm M6 24.5 20 1.0
SKU BG-36(M6D)/316L BG-36/42.5mm M6 24.5 20 1.0
SKU BG-48(M6D)/316L BG-48/54.5mm M6 24.5 20 1.0
SKU/M8

SKU BG-07(M8)/316L BG-07/10mm M8 24.5 20 1.0 50PCS
SKU BG-10(M8)/316L BG-10/13mm M8 24.5 20 1.0
SKU BG-12(M8)/316L BG-12/15.8mm M8 24.5 20 1.0
SKU BG-15(M8)/316L BG-15/18.5mm M8 24.5 20 1.0
SKU BG-17(M8)/316L BG-17/21.2mm M8 24.5 20 1.0
SKU BG-20(M8)/316L BG-20/25.0mm M8 24.5 20 1.0 25PCS
SKU BG-23(M8)/316L BG-23/28.5mm M8 24.5 20 1.0
SKU BG-25(M8)/316L BG-25/30.0mm M8 24.5 20 1.0
SKU BG-29(M8)/316L BG-29/34.5mm M8 24.5 20 1.0
SKU BG-36(M8)/316L BG-36/42.5mm M8 24.5 20 1.0
SKU BG-48(M8)/316L BG-48/54..5mm M8 24.5 20 1.0
SKU/M10

SKU BG-07(M10)/316L BG-07/10mm M10 30 25 1.0 50PCS
SKU BG-10(M10)/316L BG-10/13mm M10 30 25 1.0
SKU BG-12(M10)/316L BG-12/15.8mm M10 30 25 1.0
SKU BG-15(M10)/316L BG-15/18.5mm M10 30 25 1.0
SKU BG-17(M10)/316L BG-17/21.2mm M10 30 25 1.0
SKU BG-20(M10)/316L BG-20/25.0mm M10 30 25 1.0 25PCS
SKU BG-23(M10)/316L BG-23/28.5mm M10 30 25 1.0
SKU BG-25(M10)/316L BG-25/30.0mm M10 30 25 1.0
SKU BG-29(M10)/316L BG-29/34.5mm M10 30 25 1.0
SKU BG-36(M10)/316L BG-36/42.5mm M10 30 25 1.0
SKU BG-48(M10)/316L BG-48/54.5mm M10 30 25 1.0
SKU BG-70(M10)/316L BG-67/70.0mm M10 30 25 1.0 5PCS
