This is old design, for new design,
Please check NWS series/page B94

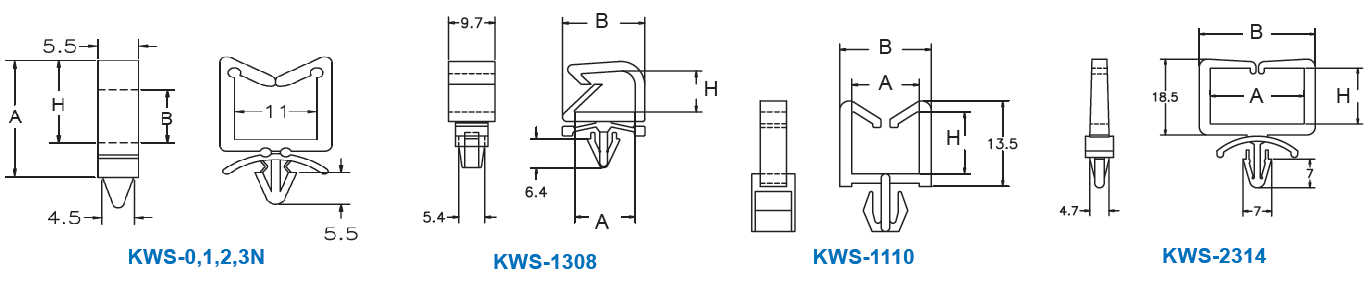

| Item No. | Dimension | Packing | |||||
| H | A | B | W | Panel hole |
Suitable panel thickness |
||
| KWS-0N | 9.2 | 12.7 | 4.0 | 11.0 | 4.8 | 2.0 |
100pcs (1000pcs) |
| KWS-1N | 11.4 | 17.9 | 8.6 | 11.0 | 4.8 | 2.0 | |
| KWS-2N | 23.4 | 26.9 | 18.2 | 11.0 | 4.8 | 2.0 | |
| KWS-3N | 31.3 | 34.8 | 26.2 | 11.0 | 4.8 | 2.0 | |
| KWS-1114 | 17.8 | 21.2 | 13.7 | 10.7 | 4.8 | 2.4 | |
| Item No. | Dimension | Packing | ||||
| H | A | B | Panel hole |
Suitable panel thickness |
||
| KWS-0506 | 5.4 | 5.0 | 9.0 | 4.8 | 3.0 |
100pcs (1000pcs) |
| KWS-1106 | 5.4 | 10.5 | 13.0 | 4.8 | 1.6 | |
| KWS-1110 | 9.8 | 10.9 | 14.4 | 2.2 | ||
| KWS-1308 | 8.5 | 12.7 | 17.2 | 5.8 | 1.6 | |
| KWS-1310 | 9.9 | 13.0 | 18.8 | |||
| KWS-2314 | 13.6 | 22.9 | 28.3 | 4.8 | 3.4 | |
